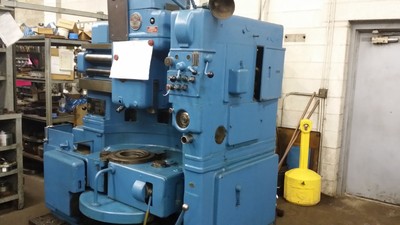

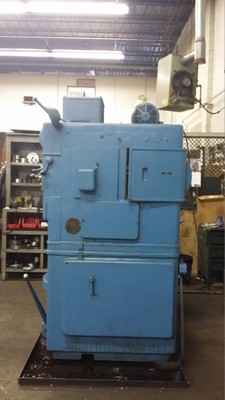

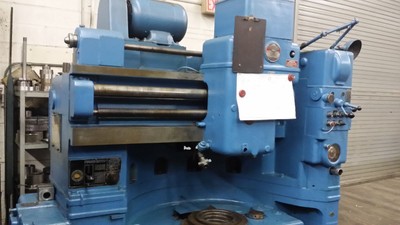

FELLOWS 36-6 GEAR SHAPER - $37,350 - (Green Bay, WI)
Model No. 36-6 FELLOWS Vertical Gear Shaping Machine, Serial No. 29483 NEW WORM GEAR AND RACK GEAR Suitable for the manufacture of internal and external spur gears, (as well as helical gears with proper guides), up to 36" (914mm) pitch diameter, 6" (152.4mm) face-width, and 3 DP (module 8.5) EQUIPMENT / FEATURES: 7-1/2 HP Main Motor, 1800 rpm Standard straight spur guide 4" diameter hollow cutter spindle Depth feed and number of cuts dial controlled Via adjustable trip dogs Riser assembly of 3" height Rapid rotation of work spindle Set-up of twenty five (25) change gears Self contained coolant system, pump & piping Full complement of electrics (motors/controls) (presently arranged for 220/440 volt, 3-phase, 60Hz) Guards, covers, PRINCIPAL SPECIFICATIONS: Maximum pitch diameter (External)...... 36" (914.4mm) Maximum pitch diameter (Internal)...... 36" (914.4mm) Maximum workpiece & fixture diameter... 40" (1016mm) Maximum face width..................... 6" (150mm) (depending on cutter relief required) Maximum helix angle (w/proper guides).. 45 degrees Maximum distance, centerline of cutter spindle and work spindle for externals (w/saddle-backed off).................. 21.5" (546mm) Maximum distance, centerline of cutter spindle & work spdl for internals...... 13.75"(349.25mm) Maximum work & fixture clearance height w/cutter ram in uppermost position.................. 19.75" (501.65mm) Maximum diametral pitch spur gears..... 3 DP(8.5-module) Maximum diametral pitch helical gears.. 4/5 DP Maximum diametral pitch helical gears.. (6.4/5-module) Work spindle bore diameter............. 5.875" (149.23mm) Cutter spindle taper................... #18 Jarno Twelve (12) stroking speeds, w/ranges.. 18 300 S.P.M. Machine overall length................. 92" (2336.8mm) Machine overall width.................. 60" (1524mm) Machine overall height................. 88" (2235mm) Machine net weight, approx............. 15,400 lbs(7,000 kGs) PRICE: F.O.B. OUR WAREHOUSE............ $41,500.
