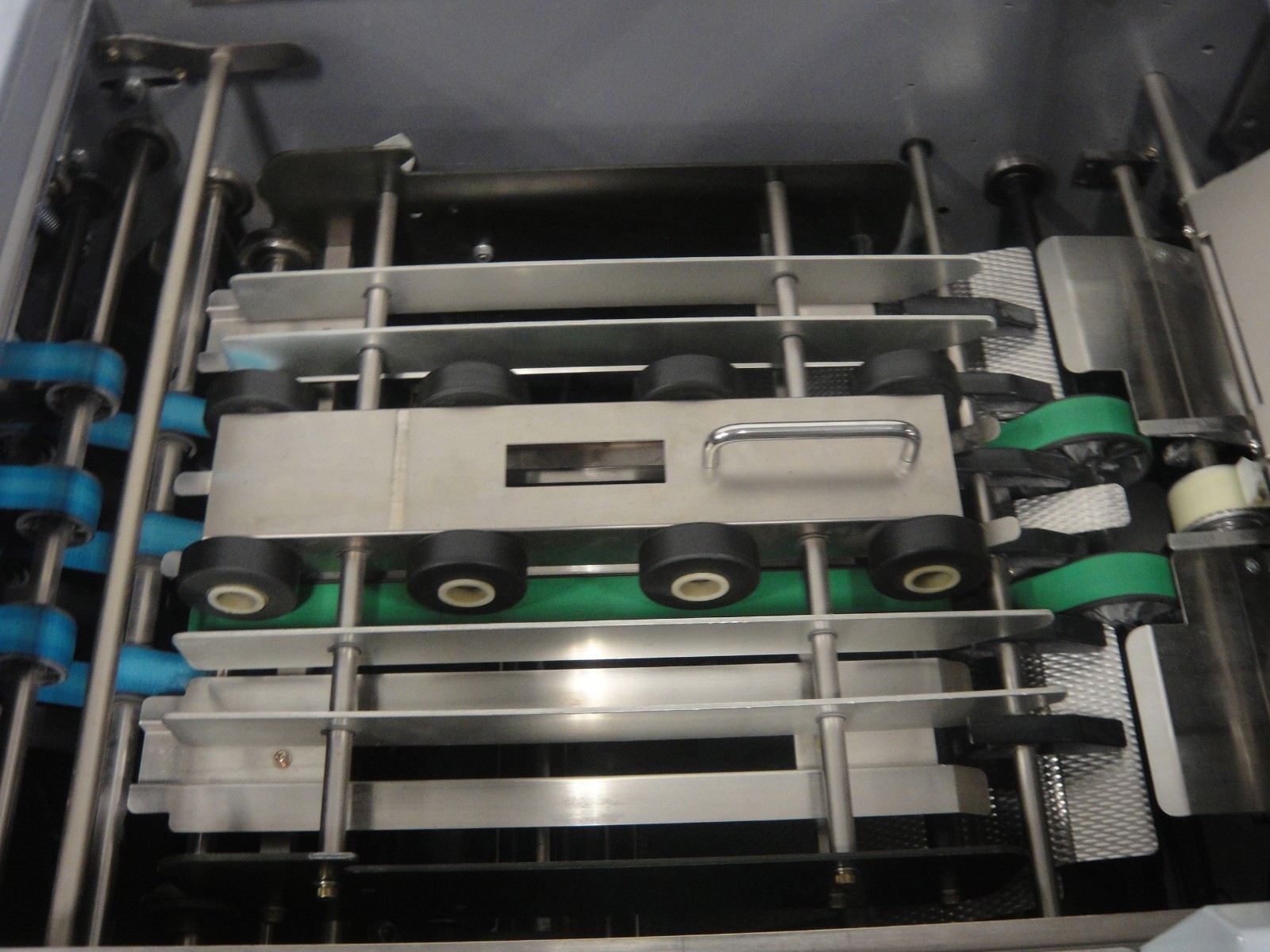

Horizon SPF-20A Stitch & Fold - $38,000 - (Dallas, NC)
Horizon SPF-20 Stitch & Fold Serial #003057FC-20A Serial #003051HOF 20 Serial #326002 Specifications: SPF-20/20A STITCHING & FOLDING SYSTEM Application Corner/Side/Top Stitching Saddlestitching. Min./Max. Sheet Sizes 5” x 7” min. to 14” x 16.75” max. 4.75” x 7” min. to 14” x 20” max. Maximum Thickness Up to .25” (Up to 3/8" with optional head) Up to 24 sheets of 50 lb. offset. Production Speed* Up to 3,600 sets/hour. Up to 3,600 booklets/hour. Power Requirement/Consumption 220 V AC, 60 HZ, single or 3-Phase / 450 W, 5 amps. Weight/Dimensions 1,034 lbs., 1,080 lbs.(SPF-20A) / 78" L x 29" W x 44" H. Features Automatic set-up on SPF-20A; variable speed; integrated hand-feed; two Hohner stitching heads standard; knife fold with dual set of fold rollers; stitch-head skew adjustment; adjustable fold plate; air-assist jogging; external adjustments on the fly. FC-20/20A FACE TRIMMER Trimming Mechanism Shear-action scissor system (self-sharpening). Cutting Dimensions Back to front edge 3.3” to 9.9”. Min./Max. Trimmed Booklet Size 3.3” x 4.75” to 9.9” x 14”. Maximum Trim .6”. Cutting Thickness 48 sheets of 50 lb. offset. Production Speed* Up to 3,600 booklets per hour. Power Requirement/Consumption 220 V AC, 60 HZ, single or 3-Phase / 200 W, 5 amps. Weight/Dimensions 507 lbs., 529 lbs.(FC-20A) / 24" L x 29" W x 42" H. Features Automated set-up on FC-20A; 25" variable speed exit conveyor; air-blast trim removal into slide-out scrap drawer; easy blade removal. HOF - 20 Specifications:Max. Sheet Size: 13.77" W x 19.68" LMin. Sheet Size: Sheet Feed Station Minimium 7.88" W x 10.83" LCover Feed Station: 7.88" W x 7.09" L Sheet Weight Range:Sheet Feed Station Normal Paper 52 to 130 gsm, Coated Paper 73 to 160 gsmCover FeedStation Normal Paper 64 to 256 gsm, Coated Paper 79 to 256 gsm Feed Speed:Sheet Feed Max. 27,000 sheets/hr. (Three StepsAdjustable)Cover Feed Station Max. 8,000 sheets/hr. (A4 / 8.5" x 11") Sheet Pile Height on Feed Tray: Sheet F…
