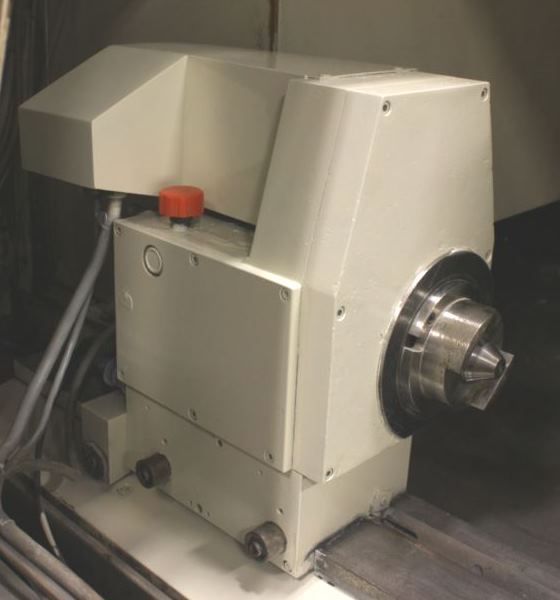

14" x 40" Studer S-36 CNC Cylindrical Grinding Machine - LMC #45790 - $47,170 - (Lincolnshire, IL)
Serial No. 020.0527.90.057New - 1998 SPECIFICATIONS:Swing - Maximum......................................................13.78"Distance between Centers..............................................39.9"Grinding Length.......................................................19.7"Workpiece Weight - Maximum.........................................286 Lbs.Cross Slide (X-Axis):- Travel - Maximum....................................................10.5"- Speed..................................................0.000004 - 197 IPMLongitudinal Slide (Z-Axis):- Travel - Maximum....................................................25.6"- Speed..................................................0.000004 - 394 IPMWheelhead:- Grinding Wheel Right.........................20" Dia. x 3" Wide x 8" Bore- Motor - High Torque Design.......................................10/15 HP- Pivot........................................................0 or 30 Deg.- Swivel Range.................................................+/- 8.5 Deg.Workhead:- Speed.......................................................1 - 1,000 RPM- Taper.........................................................No. 5 Morse- Motor..............................................................1.3 HP- C-Axis for Form Grinding......................................0.0001 Deg.Tailstock Taper.................................................No. 3 MorseDimensions - Approximate.....................102"(L-R) x 94"(F-B) x 109"(H)Weight - Approximate.............................................9,500 Lbs. EQUIPPED WITH:Fanuc 16i CNC Control w/Remote PendantFull EnclosureGranitan BaseCoolant System w/Paper Media FiltrationRoyal Mist CollectorTransformerBooks, Manuals, & Drawings *Preliminary Specifications Subject to Verification. All sales are As-Is, F.O.B. Origin, Freight Collect (Buyer is responsiblefor all freight and shipping costs, but we're happy to assist in makingarrangements). We will message additional photos as requested and you are welc…
